私有消息 - 第四部分

¥Private messaging - Part IV

本指南分为四个不同的部分：

¥This guide has four distinct parts:

这是 第三部分 结束时的情况：

¥Here's where we were at the end of the 3rd part:

Chat

现在我们将了解如何扩展到多个 Socket.IO 服务器，以实现高可用性/负载平衡目的。

¥We will see now how we can scale to multiple Socket.IO servers, for high availability / load-balancing purposes.

安装​

¥Installation

让我们检查一下第四部分的分支：

¥Let's checkout the branch for part IV:

git checkout examples/private-messaging-part-4

你应该在当前目录中看到以下内容：

¥Here's what you should see in the current directory:

├── babel.config.js
├── package.json
├── public
│   ├── favicon.ico
│   ├── fonts
│   │   └── Lato-Regular.ttf
│   └── index.html
├── README.md
├── server
│   ├── cluster.js (created)
│   ├── docker-compose.yml (created)
│   ├── index.js (updated)
│   ├── messageStore.js (updated)
│   ├── package.json (updated)
│   └── sessionStore.js (updated)
└── src
    ├── App.vue
    ├── components
    │   ├── Chat.vue
    │   ├── MessagePanel.vue
    │   ├── SelectUsername.vue
    │   ├── StatusIcon.vue
    │   └── User.vue
    ├── main.js
    └── socket.js

完整的差异可以在 此处 中找到。

¥The complete diff can be found here.

更新服务器​

¥Updating the server

对于最后一部分，我们需要在服务器端添加 3 个额外的依赖：

¥For this last part, we need 3 additional dependencies on the server-side:

我们还需要一个 Redis 实例。为了你的方便，提供了 docker-compose.yml 文件：

¥We also need a Redis instance. For your convenience, a docker-compose.yml file is provided:

cd server
docker-compose up -d

npm install
npm start

这将创建 4 个 Node.js 工作线程，每个工作线程运行相同的 index.js 文件。

¥This will create 4 Node.js workers, each running the same index.js file.

客户端不需要做任何改变，这里我们重点关注服务器端。

¥On the client-side, no change is needed, we will focus on the server-side here.

工作原理​

¥How it works

创建多个服务器​

¥Creating multiple servers

创建多个 Socket.IO 服务器时，需要做两件事：

¥When creating multiple Socket.IO servers, there are two things to do:

  • 你需要启用粘性会话（请参阅 此处 以获得完整说明）

    ¥you need to enable sticky-session (please see here for the complete explanation)

  • 你需要将默认内存适配器替换为 Redis 适配器（或其他兼容适配器）

    ¥you need to replace the default in-memory adapter with the Redis adapter (or another compatible adapter)

在我们的示例中，@socket.io/sticky 模块用于确保来自给定客户端的请求始终路由到同一 Socket.IO 服务器。这就是所谓的 "sticky-session"：

¥In our example, the @socket.io/sticky module is used to ensure that requests from a given client are always routed to the same Socket.IO server. This is what is called "sticky-session":

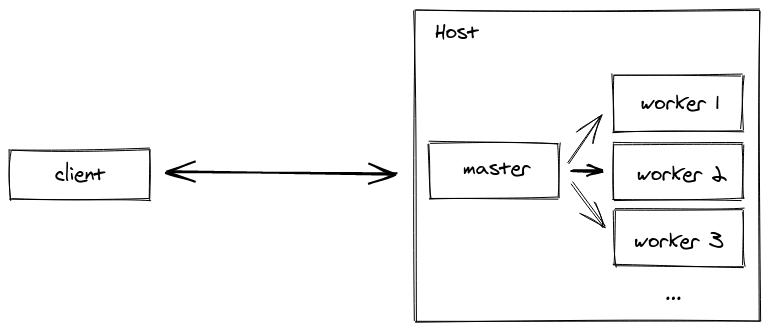

Sticky session

注意：我们还可以创建多个监听不同端口（或使用多个主机）的进程，并在它们前面添加一个反向代理。documentation 中介绍了为 NginX 或 HAProxy 等常见反向代理解决方案启用粘性会话。

¥Note: we could also have created several processes listening to different ports (or used multiple hosts), and add a reverse-proxy in front of them. Enabling sticky-session for common reverse-proxy solutions like NginX or HAProxy is covered in the documentation.

集群在 server/cluster.js 文件中创建：

¥The cluster is created in the server/cluster.js file:

const cluster = require("cluster");
const http = require("http");
const { setupMaster } = require("@socket.io/sticky");

const WORKERS_COUNT = 4;

if (cluster.isMaster) {
  console.log(`Master ${process.pid} is running`);

  for (let i = 0; i < WORKERS_COUNT; i++) {
    cluster.fork();
  }

  cluster.on("exit", (worker) => {
    console.log(`Worker ${worker.process.pid} died`);
    cluster.fork();
  });

  const httpServer = http.createServer();
  setupMaster(httpServer, {
    loadBalancingMethod: "least-connection", // either "random", "round-robin" or "least-connection"
  });
  const PORT = process.env.PORT || 3000;

  httpServer.listen(PORT, () =>
    console.log(`server listening at http://localhost:${PORT}`)
  );
} else {
  console.log(`Worker ${process.pid} started`);
  require("./index");
}

在我们现有的 server/index.js 文件中，有一个更改：工作进程创建的 HTTP 服务器实际上并不监听给定的端口，请求将由主进程处理，然后转发到正确的工作进程。

¥In our existing server/index.js file, there is a single change: the HTTP server created by the worker process does not actually listen to a given port, the requests will be handled by the master process and then forwarded to the right worker.

前：

¥Before:

httpServer.listen(PORT, () =>
  console.log(`server listening at http://localhost:${PORT}`)
);

后：

¥After:

setupWorker(io);

@socket.io/sticky 提供的 setupWorker 方法将负责 master 和 worker 之间的同步。

¥The setupWorker method provided by the @socket.io/sticky will take care of the synchronization between the master and the worker.

会话和消息​

¥Sessions & messages

现在粘性会话已启用，我们需要在 Socket.IO 服务器之间共享会话和消息。

¥Now that sticky-session is enabled, we need to share sessions and messages across the Socket.IO servers.

我们基于 Redis 创建一个新的 SessionStore。我们将使用 HSET 命令将每个会话存储在 Redis 哈希中：

¥We create a new SessionStore based on Redis. We will store each session in a Redis hash, with the HSET command:

class RedisSessionStore extends SessionStore {
  // ...
  saveSession(id, { userID, username, connected }) {
    this.redisClient
      .multi()
      .hset(`session:${id}`, "userID", userID, "username", username, "connected", connected)
      .expire(`session:${id}`, SESSION_TTL)
      .exec();
  }
  // ...
}

我们还为密钥设置了过期时间，以便清理旧会话。

¥We also set an expiry to the key in order to clean up old sessions.

使用 HMGET 命令获取会话非常简单：

¥Fetching the session is quite straightforward, with the HMGET command:

const mapSession = ([userID, username, connected]) =>
  userID ? { userID, username, connected: connected === "true" } : undefined;

class RedisSessionStore extends SessionStore {
  // ...
  findSession(id) {
    return this.redisClient
      .hmget(`session:${id}`, "userID", "username", "connected")
      .then(mapSession);
  }
  // ...
}

获取所有会话有点复杂：

¥Fetching all sessions is a bit more complex:

class RedisSessionStore extends SessionStore {
  // ...
  async findAllSessions() {
    // first, we fetch all the keys with the SCAN command
    const keys = new Set();
    let nextIndex = 0;
    do {
      const [nextIndexAsStr, results] = await this.redisClient.scan(
        nextIndex,
        "MATCH",
        "session:*",
        "COUNT",
        "100"
      );
      nextIndex = parseInt(nextIndexAsStr, 10);
      results.forEach((s) => keys.add(s));
    } while (nextIndex !== 0);

    // and then we retrieve the session details with multiple HMGET commands
    const commands = [];
    keys.forEach((key) => {
      commands.push(["hmget", key, "userID", "username", "connected"]);
    });
    return this.redisClient
      .multi(commands)
      .exec()
      .then((results) => {
        return results
          .map(([err, session]) => (err ? undefined : mapSession(session)))
          .filter((v) => !!v);
      });
  }
}

同样，我们基于 Redis 创建一个新的 MessageStore。我们将使用 RPUSH 命令将链接到给定用户的所有消息存储在 Redis 列表中：

¥Similarly, we create a new MessageStore based on Redis. We will store all the messages linked to a given user in a Redis list, with the RPUSH command:

class RedisMessageStore extends MessageStore {
  // ...
  saveMessage(message) {
    const value = JSON.stringify(message);
    this.redisClient
      .multi()
      .rpush(`messages:${message.from}`, value)
      .rpush(`messages:${message.to}`, value)
      .expire(`messages:${message.from}`, CONVERSATION_TTL)
      .expire(`messages:${message.to}`, CONVERSATION_TTL)
      .exec();
  }
  // ...
}

使用 LRANGE 命令检索消息：

¥Retrieving the messages is done with the LRANGE command:

class RedisMessageStore extends MessageStore {
  // ...
  findMessagesForUser(userID) {
    return this.redisClient
      .lrange(`messages:${userID}`, 0, -1)
      .then((results) => {
        return results.map((result) => JSON.parse(result));
      });
  }
}

转发消息​

¥Forwarding messages

还需要最后一项修改：我们需要确保消息确实到达接收者，即使该接收者没有连接到同一个 Socket.IO 服务器上：

¥There is one last modification that is needed: we need to make sure that messages actually reach the recipient, even if this recipient is not connected on the same Socket.IO server:

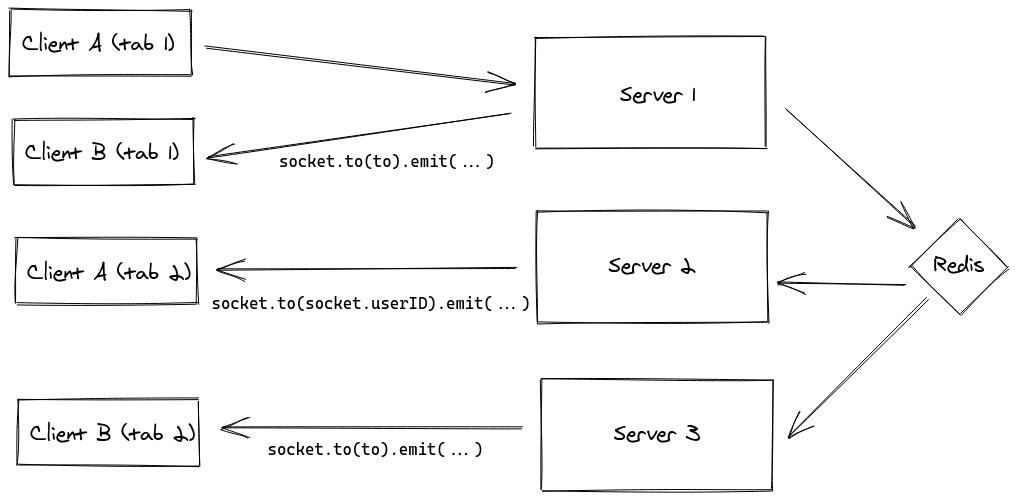

Broadcasting with the Redis adapter

这是 Redis 适配器的职责，它依靠 Redis 发布/订阅机制在 Socket.IO 服务器之间广播消息并最终到达所有客户端。

¥This is the duty of the Redis adapter, which relies on the Redis pub/sub mechanism to broadcast messages between the Socket.IO servers and eventually reach all clients.

const httpServer = require("http").createServer();
const Redis = require("ioredis");
const redisClient = new Redis();
const io = require("socket.io")(httpServer, {
  cors: {
    origin: "http://localhost:8080",
  },
  adapter: require("socket.io-redis")({
    pubClient: redisClient,
    subClient: redisClient.duplicate(),
  }),
});

就是这样！如果你的计算机上有 Redis CLI，你可以检查通过网络发送的消息：

¥And that's it! If you have a Redis CLI on your machine, you can check the messages that are sent on the wire:

$ redis-cli
127.0.0.1:6379> PSUBSCRIBE socket.io*
Reading messages... (press Ctrl-C to quit)
1) "psubscribe"
2) "socket.io*"
3) (integer) 1
1) "pmessage"
2) "socket.io*"
3) "socket.io#/#"
4) "\x93\xa6XFD3OF\x83..."

文档：

¥Documentation:

注意：使用 Redis 适配器，"disconnect" 处理程序中使用的 allSockets() 方法会自动返回所有 Socket.IO 服务器上的 Socket ID，因此无需更新任何内容。

¥Note: with the Redis adapter, the allSockets() method which is used in the "disconnect" handler automatically returns the Socket IDs across all Socket.IO servers, so there is nothing to update.

审查​

¥Review

好的，那么我们总结一下：我们已经创建了一个功能齐全的聊天（是的，再一次！），健壮，可以水平扩展，这使我们能够引入一些有用的 Socket.IO 功能：

¥OK, so let's sum it up: we have created a fully functional chat (yes, once again!), robust, ready to scale horizontally, which allowed us to introduce some useful Socket.IO features:

谢谢阅读！

¥Thanks for reading!
