基本 CRUD 应用
¥Basic CRUD application
虽然对基本 CRUD 应用使用 Socket.IO（或普通 WebSockets）可能听起来有点大材小用，但轻松通知所有用户的能力确实很强大。
¥While using Socket.IO (or plain WebSockets) for a basic CRUD application might sound a bit overkill, the ability to easily notify all users is really powerful.
在本指南中，我们将基于出色的 TodoMVC 项目 创建一个基本的 CRUD（代表创建/读取/更新/删除）应用：
¥In this guide we will create a basic CRUD (standing for Create/Read/Update/Delete) application, based on the awesome TodoMVC project:
我们将讨论以下主题：
¥We will cover the following topics:
开始吧！
¥Let's start!
安装
¥Installation
代码可以在主存储库的 examples 目录中找到：
¥The code can be found in the examples directory of the main repository:
git clone https://github.com/socketio/socket.io.git
cd socket.io/examples/basic-crud-application/
你应该看到两个目录：
¥You should see two directories:
server/：服务器实现¥
server/: the server implementationangular-client/：基于 Angular 的客户端实现¥
angular-client/: a client implementation based on Angularvue-client/：基于 Vue 的客户端实现¥
vue-client/: a client implementation based on Vue
运行前端
¥Running the frontend
该项目是一个使用 角度 CLI 创建的基本 Angular 应用。
¥The project is a basic Angular application which was created with the Angular CLI.
运行它：
¥To run it:
cd angular-client
npm install
npm start
然后，如果你在浏览器中打开 http://localhost:4200，你应该看到：
¥Then if you open http://localhost:4200 in your browser, you should see:
到目前为止，一切都很好。
¥So far, so good.
运行服务器
¥Running the server
现在让我们关注服务器：
¥Let's focus on the server now:
cd ../server
npm install
npm start
你现在可以打开多个选项卡，并且待办事项列表应该神奇地在它们之间同步：
¥You can now open several tabs, and the list of todos should magically be synced between them:
工作原理
¥How it works
服务器结构
¥Server structure
├── lib
│ ├── index.ts
│ ├── app.ts
│ ├── todo-management
│ │ ├── todo.handlers.ts
│ | └── todo.repository.ts
│ └── util.ts
├── package.json
├── test
│ └── todo-management
│ └── todo.tests.ts
└── tsconfig.json
让我们详细说明每个文件的职责：
¥Let's detail the duty of each file:
index.ts：创建组件并初始化应用的服务器的入口点¥
index.ts: the entrypoint of the server which creates the components and initializes the applicationapp.ts：应用本身，其中创建 Socket.IO 服务器并注册处理程序¥
app.ts: the application itself, where the Socket.IO server is created, and the handlers are registeredtodo.handlers.ts：Todo 实体上的操作处理程序¥
todo.handlers.ts: the handlers of the operations on the Todo entitiestodo.repository.ts：用于从数据库中保存/检索 Todo 实体的存储库¥
todo.repository.ts: the repository for persisting/retrieving the Todo entities from the databaseutil.ts：项目中使用的一些常用的实用方法¥
util.ts: some common utility methods that are used in the projecttodo.tests.ts：集成测试¥
todo.tests.ts: the integration tests
初始化
¥Initialization
首先我们关注一下 lib/app.ts 文件中的 createApplication 方法：
¥First, let's focus on the createApplication method in the lib/app.ts file:
const io = new Server<ClientEvents, ServerEvents>(httpServer, serverOptions);
我们使用以下选项创建 Socket.IO 服务器：
¥We create the Socket.IO server with the following options:
{
cors: {
origin: ["http://localhost:4200"]
}
}
因此，允许在 http://localhost:4200 上提供服务的前端应用进行连接。
¥So the frontend application, which is served at http://localhost:4200, is allowed to connect.
文档：
¥Documentation:
<ClientEvents, ServerEvents> 部分特定于 TypeScript 用户。它允许显式指定服务器和客户端之间交换的事件，以便你获得自动补齐和类型检查：
¥The <ClientEvents, ServerEvents> part is specific to TypeScript users. It allows to explicitly specify the events that are exchanged between the server and the client, so you get autocompletion and type checking:
回到我们的应用！然后我们通过注入应用组件来创建处理程序：
¥Back to our application! We then create our handlers by injecting the application components:
const {
createTodo,
readTodo,
updateTodo,
deleteTodo,
listTodo,
} = createTodoHandlers(components);
我们注册它们：
¥And we register them:
io.on("connection", (socket) => {
socket.on("todo:create", createTodo);
socket.on("todo:read", readTodo);
socket.on("todo:update", updateTodo);
socket.on("todo:delete", deleteTodo);
socket.on("todo:list", listTodo);
});
文档：监听事件
¥Documentation: Listening to events
注意：事件后缀（:create、:read...）替换 REST API 中常见的 HTTP 动词：
¥Note: the event suffixes (:create, :read, ...) replace the usual HTTP verbs in a REST API:
POST /todos=>todo:createGET /todos/:id=>todo:readPUT /todos/:id=>todo:update...
事件处理程序
¥Event handler
现在让我们关注 lib/todo-management/todo.handlers.ts 文件中的 createTodo 处理程序：
¥Let's focus on the createTodo handler now, in the lib/todo-management/todo.handlers.ts file:
首先，我们检索 Socket 实例：
¥First, we retrieve the Socket instance:
createTodo: async function (
payload: Todo,
callback: (res: Response<TodoID>) => void
) {
const socket: Socket<ClientEvents, ServerEvents> = this;
// ...
}
请注意，使用箭头函数 (createTodo: async () => {}) 在这里不起作用，因为 this 不会指向 Socket 实例。
¥Please note that using an arrow function (createTodo: async () => {}) wouldn't work here, since the this wouldn't point to the Socket instance.
然后，借助出色的 joi 库，我们验证了有效负载：
¥Then, we validate the payload thanks to the great joi library:
const { error, value } = todoSchema.tailor("create").validate(payload, {
abortEarly: false, // return all errors and not just the first one
stripUnknown: true, // remove unknown attributes from the payload
});
¥Documentation: https://joi.dev/api/
如果存在验证错误，我们只需调用确认回调并返回：
¥If there are validation errors, we just call the acknowledgement callback and return:
if (error) {
return callback({
error: Errors.INVALID_PAYLOAD,
errorDetails: error.details,
});
}
我们在客户端处理错误：
¥And we handle the error on the client side:
// angular-client/src/app/store.ts
this.socket.emit("todo:create", { title, completed: false }, (res) => {
if ("error" in res) {
// handle the error
} else {
// success!
}
});
文档：回执
¥Documentation: Acknowledgements
如果有效负载成功匹配模式，我们可以生成一个新的 ID 并保留实体：
¥If the payload successfully matches the schema, we can generate a new ID and persist the entity:
value.id = uuid();
try {
await todoRepository.save(value);
} catch (e) {
return callback({
error: sanitizeErrorMessage(e),
});
}
如果出现意外错误（例如，如果数据库关闭），我们将使用通用错误消息调用确认回调（以免暴露应用的内部结构）。
¥If there is an unexpected error (for example, if the database is down), we call the acknowledgement callback with a generic error message (in order not to expose the internals of our application).
否则，我们只需使用新 ID 调用回调：
¥Else, we just call the callback with the new ID:
callback({
data: value.id,
});
最后（这是神奇的部分），我们通知所有其他用户进行创建：
¥And finally (that's the magic part), we notify all the other users for the creation:
socket.broadcast.emit("todo:created", value);
文档：广播事件
¥Documentation: Broadcasting events
在客户端，我们为此事件注册一个处理程序：
¥On the client-side, we register a handler for this event:
// angular-client/src/app/store.ts
this.socket.on("todo:created", (todo) => {
this.todos.push(mapTodo(todo));
});
瞧！
¥And voilà!
测试
¥Tests
由于我们是相当理性的开发者，因此我们现在将为我们的处理程序添加一些测试。让我们打开 test/todo-management/todo.tests.ts 文件：
¥Since we are quite reasonable developers, we'll now add a few tests for our handler. Let's open the test/todo-management/todo.tests.ts file:
该应用是在 beforeEach 钩子中创建的：
¥The application is created in the beforeEach hook:
beforeEach((done) => {
const partialDone = createPartialDone(2, done);
httpServer = createServer();
todoRepository = new InMemoryTodoRepository();
createApplication(httpServer, {
todoRepository,
});
// ...
});
我们创建两个客户端，一个用于发送有效负载，另一个用于接收通知：
¥And we create two clients, one for sending the payload and the other for receiving the notifications:
httpServer.listen(() => {
const port = (httpServer.address() as AddressInfo).port;
socket = io(`http://localhost:${port}`);
socket.on("connect", partialDone);
otherSocket = io(`http://localhost:${port}`);
otherSocket.on("connect", partialDone);
});
重要的提示：这两个客户端在 afterEach 钩子中显式断开连接，因此它们不会阻止进程退出。
¥Important note: those two clients are explicitly disconnected in the afterEach hook, so they don't prevent the process from exiting.
文档：https://mocha.nodejs.cn/#hooks
¥Documentation: https://mocha.nodejs.cn/#hooks
我们的第一个测试（快乐路径）非常简单：
¥Our first test (the happy path) is quite straightforward:
describe("create todo", () => {
it("should create a todo entity", (done) => {
const partialDone = createPartialDone(2, done);
// send the payload
socket.emit(
"todo:create",
{
title: "lorem ipsum",
completed: false,
},
async (res) => {
if ("error" in res) {
return done(new Error("should not happen"));
}
expect(res.data).to.be.a("string");
// check the entity stored in the database
const storedEntity = await todoRepository.findById(res.data);
expect(storedEntity).to.eql({
id: res.data,
title: "lorem ipsum",
completed: false,
});
partialDone();
}
);
// wait for the notification of the creation
otherSocket.on("todo:created", (todo) => {
expect(todo.id).to.be.a("string");
expect(todo.title).to.eql("lorem ipsum");
expect(todo.completed).to.eql(false);
partialDone();
});
});
});
我们也使用无效的有效负载进行测试：
¥Let's test with an invalid payload too:
describe("create todo", () => {
it("should fail with an invalid entity", (done) => {
const incompleteTodo = {
completed: "false",
description: true,
};
socket.emit("todo:create", incompleteTodo, (res) => {
if (!("error" in res)) {
return done(new Error("should not happen"));
}
expect(res.error).to.eql("invalid payload");
// check the details of the validation error
expect(res.errorDetails).to.eql([
{
message: '"title" is required',
path: ["title"],
type: "any.required",
},
]);
done();
});
// no notification should be received
otherSocket.on("todo:created", () => {
done(new Error("should not happen"));
});
});
});

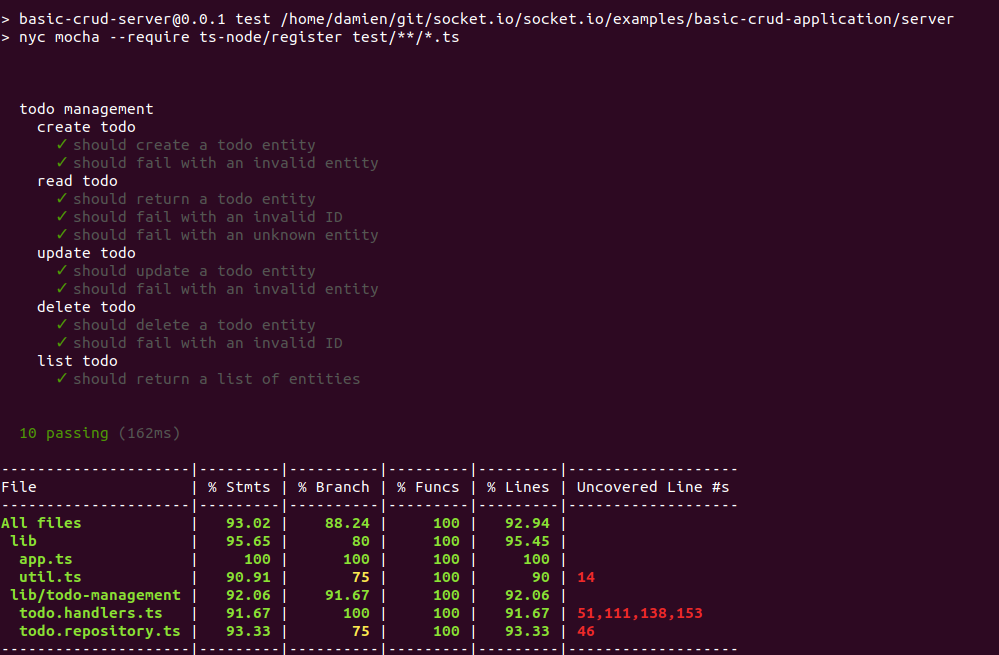

你可以使用 npm test 运行完整的测试套件：
¥You can run the full test suite with npm test:
这就是大家！其他处理程序与第一个处理程序非常相似，这里不再赘述。
¥That's all folks! The other handlers are quite similar to the first one, and will not be detailed here.
下一步
¥Next steps
谢谢阅读！
¥Thanks for reading!
